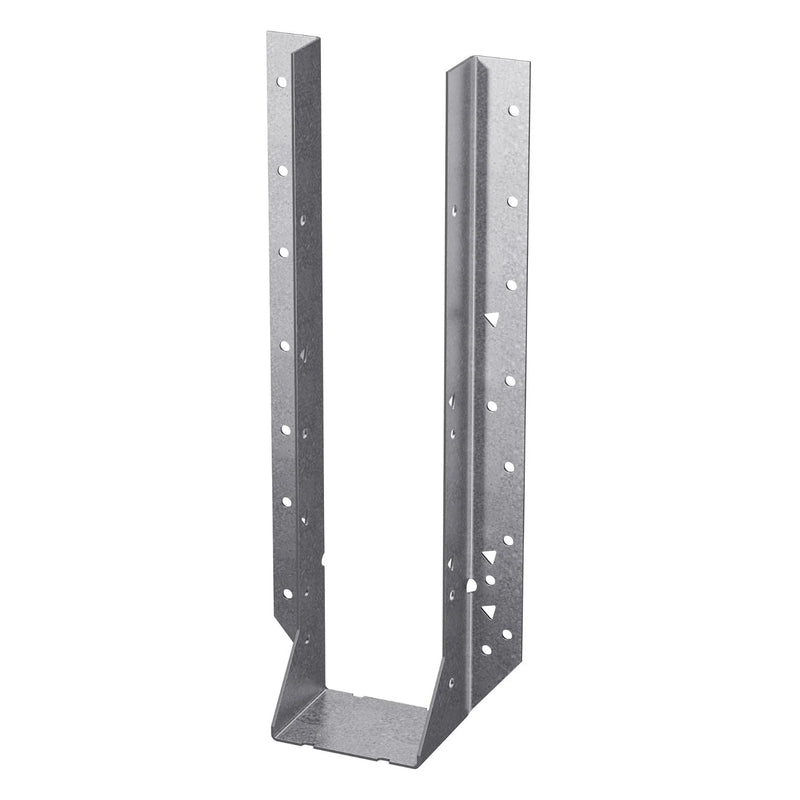

A galvanized steel joist hanger sized for a doubled 2 in. x 8 in. carrier member, used to hang joists, headers and trimmers from a beam, ledger or rim board. The hanger transfers the load of the supported member into the face of the carrying member, replacing toe-nailing with a nailed or screwed steel seat.

The formed steel body wraps the end of the double member, with a seat that supports the bottom of the joist and side flanges punched with nail holes for fastening into both the header and the joist. Installation is face-mount: the flanges bear flat against the supporting member and every specified hole is filled with the connector fastener called for by the manufacturer.

Joist hangers are used in pairs with matched members, so the hanger width must correspond to the actual width of the built-up joist. A hanger for a doubled 2x member is wider than a single-ply hanger of the same depth and is not interchangeable with it.

Key Features

• Face-mount hanger designed to receive a built-up, doubled 2x joist
• Formed steel body with a load-bearing seat and punched side flanges
• Galvanized finish for corrosion resistance in typical framing exposures
• Pre-punched fastener holes locate nails or structural screws in both the header and the joist
• Replaces end toe-nailing at beam, ledger and rim connections
• Sold individually, so quantities can be matched to the joist layout

Applications

• Hanging doubled floor joists from a girder or built-up beam
• Framing headers and trimmers around stair and floor openings
• Ledger-to-joist connections in deck and porch framing
• Attaching doubled joists to a rim board or band joist
• Retrofitting a failed or toe-nailed joist end connection
• Carrying doubled members in ceiling and roof framing

Product Details

• Type: Face-mount joist hanger
• Joist Size: Double 2 in. x 8 in.
• Material: Formed galvanized steel
• Installation: Nailed or screwed through punched flange holes
• Unit: Each
