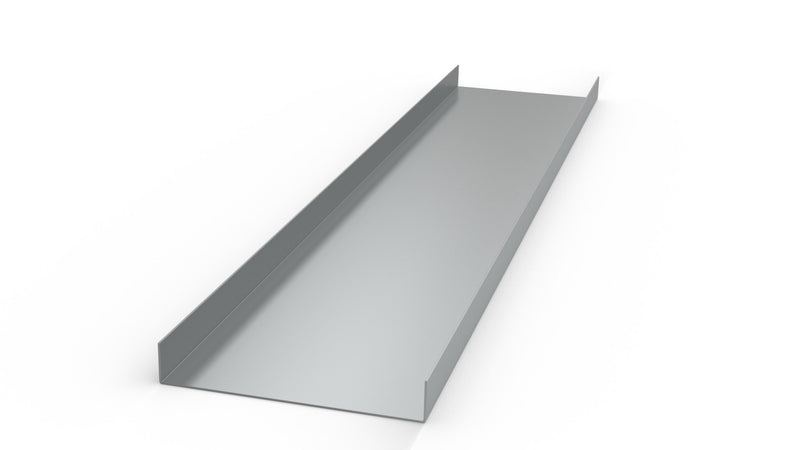

OEG Structural Steel Track is a durable, U-shaped channel designed to secure structural studs in a wide range of framing applications. Commonly used as top and bottom track for wall systems, this versatile component also serves as end support closures for floor joists, headers for wall openings, and solid blocking.

Manufactured from high-quality galvanized steel, OEG Structural Track provides excellent strength and corrosion resistance, ensuring long-term structural performance. Designed to pair with corresponding stud sizes and gauges, it delivers reliable alignment and support in both load-bearing and non-load-bearing systems.

Key Features

• U-shaped channel for secure stud alignment and support
• Ideal for top and bottom track applications
• Made from galvanized steel for corrosion resistance
• Compatible with matching stud sizes and gauges
• Suitable for structural and non-structural framing
• Color-coded for easy identification on-site

Applications

• Top and bottom track for wall stud framing
• End support closures for floor joists
• Foundation wall and exterior framing support
• Headers for wall openings
• Solid blocking in structural systems

Punch-Out Details

• Standard punch-out size: 1½" x 4" (for 3 5/8" and wider)
• Tracks smaller than 3 5/8" shipped without punch-outs unless specified
• Punch-outs begin 12" from lead edge, spaced every 24"
• Final punch-out located 24" before end
• Custom punch-out sizes and placement available upon request

Specifications

• Brand: OEG
• Material: Galvanized Steel
• Coating: G60 standard (G90 available)
• Web Depths: 2 1/2", 3 1/2", 3 5/8", 4", 5 1/2", 6", 8", 10", 12", 14", 16"
• Flange Sizes: 1", 1 1/4", 1 1/2", 2", 3", 3 1/2"
• Lengths: 8', 10', 12' (custom lengths available)
• Gauges: Available in all structural gauges

Standards & Compliance

• Meets or exceeds:
  • ASTM A370
  • ASTM A1003
  • ASTM C754
  • ASTM C955
  • ASTM E90
  • ASTM E119

1. Submit a quote request for this product

2. Our team reviews availability and pricing

3. We follow up with a detailed quote and next steps


Special order items are sourced to your project requirements. Pricing, availability, and lead times vary by product and quantity.

• Local pickup options available
• Delivery available depending on product and location
• Lead times vary based on availability and order size
