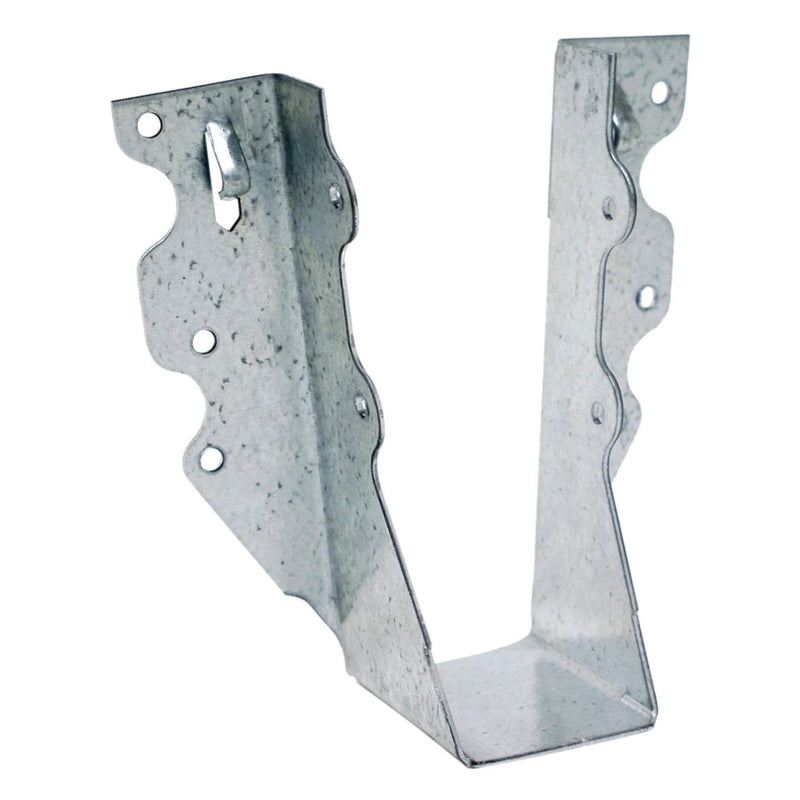

A face mount joist hanger is a formed metal connector used to carry the end of a joist off a header, beam or ledger. The stirrup cradles the bottom of the joist while the flanges sit flat against the face of the supporting member, so the connection is made entirely with fasteners driven from the face rather than by notching or toe-nailing.

The U-shaped seat holds the joist at the correct elevation and keeps the top edges flush, which matters where sheathing or decking runs across the framing. Pre-punched nail holes in the flanges and side plates set the fastener pattern, so installation is a matter of squaring the hanger to the layout line and filling the specified holes with the connector nails or structural screws called for by the hanger manufacturer.

This size is intended for a nominal joist end matching the seat width and height listed in the specifications. Connectors are sized to the member they carry; a hanger that is wider or shallower than the joist will not bear the way it is designed to.

Key Features

• Face mount design - flanges fasten flat to the face of a header, beam or ledger
• Formed steel stirrup supports the joist end and sets its bearing elevation
• Pre-punched holes on the flanges and side plates locate the fasteners
• Holds joist tops flush with the carrying member for continuous sheathing or decking
• Eliminates notching or toe-nailing at the joist end
• Sold individually, so quantity can be matched to the joist layout

Applications

• Hanging floor joists from a built-up beam or girder
• Framing deck joists off a ledger board
• Carrying roof or ceiling joists at a header
• Header-to-trimmer connections around stair and chase openings
• Repair and retrofit of existing joist-to-beam connections

Product Details

• Type: Face Mount Joist Hanger
• Category: Framing Connector
• Nominal Size: 5 in. x 10 in.
• Mounting: Face mount to header, beam or ledger
• Material: Formed steel
• Sold As: Each

Specifications

1. Submit a quote request for this product

2. Our team reviews availability and pricing

3. We follow up with a detailed quote and next steps


Pricing, availability, and lead times may vary by product and quantity.

• Local pickup options available
• Delivery available depending on product and location
• Lead times vary based on availability and order size
