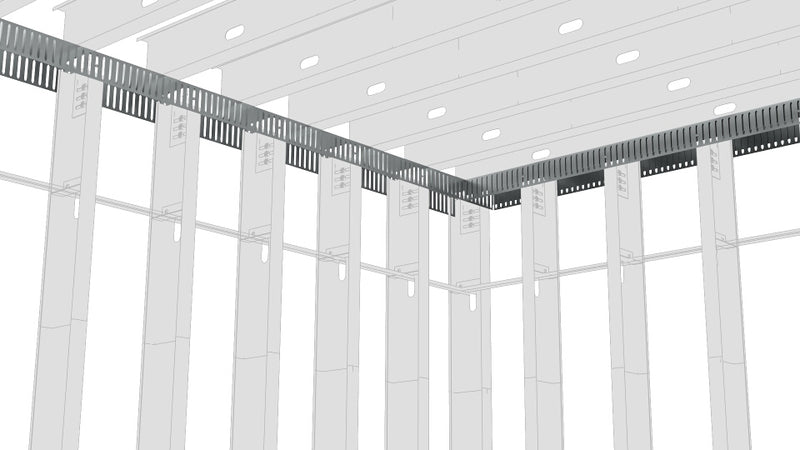

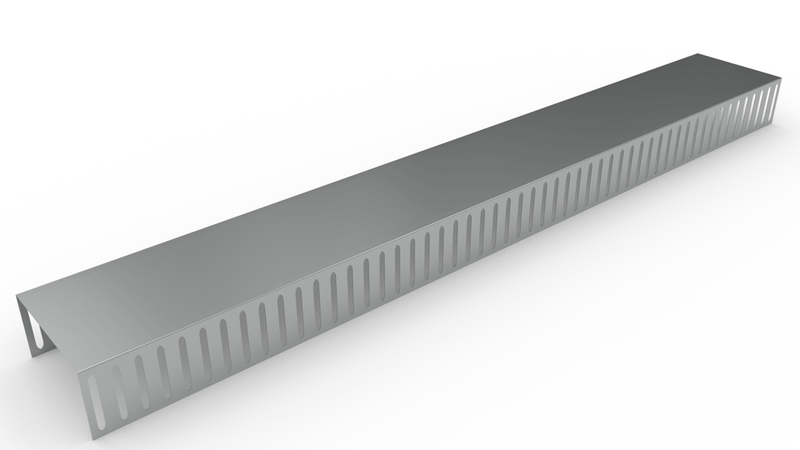

Slotted Track is a steel framing solution designed to accommodate vertical building deflection at the head of wall—without the need for additional deflection clips. Featuring pre-punched slots, it allows controlled vertical movement while preventing axial load transfer to wall studs.

Engineered for efficiency, Slotted Track simplifies installation in both interior non-load-bearing walls and exterior curtain wall systems, reducing labor time and material requirements.

Key Features

• Pre-punched slots eliminate need for deflection clips
• Allows vertical building movement at head of wall
• Prevents axial load transfer to studs
• Speeds up installation and reduces labor costs
• Ideal for curtain walls and non-load-bearing partitions
• Galvanized steel for corrosion resistance

Slot Configuration

• Slot Size: 0.22" wide x 1-1/2" long
• Spacing: 1" on center (O.C.)

Important Installation Notes

• Not intended for axial load-bearing walls
• Bridging at the top of wall is required
• Deflection details should be determined by the project’s structural designer

Applications

• Head-of-wall deflection systems
• Exterior curtain wall framing
• Interior non-load-bearing partitions
• Commercial steel framing projects

Specifications

• Material: Zinc-Coated (Galvanized) Steel
• Coating Standard: Meets or exceeds ASTM A653 & ASTM A1003

Available Gauges:

• 20 Gauge Structural (30 mil)
• 20 Gauge Structural (33 mil)
• 18 Gauge (43 mil)
• 16 Gauge (54 mil)
• 14 Gauge (68 mil)

Leg Sizes:

• 2"
• 2-1/2"
• 3"

Web Depths:

• 2-1/2"
• 3-5/8"
• 4"
• 6"
• 8"
• 10"

Standard Length:

• 10 ft
• Custom sizes available

Why Choose Slotted Track?

Slotted Track provides a faster, more efficient alternative to traditional deflection systems by eliminating the need for clips—while still delivering reliable performance and compliance with structural movement requirements.
