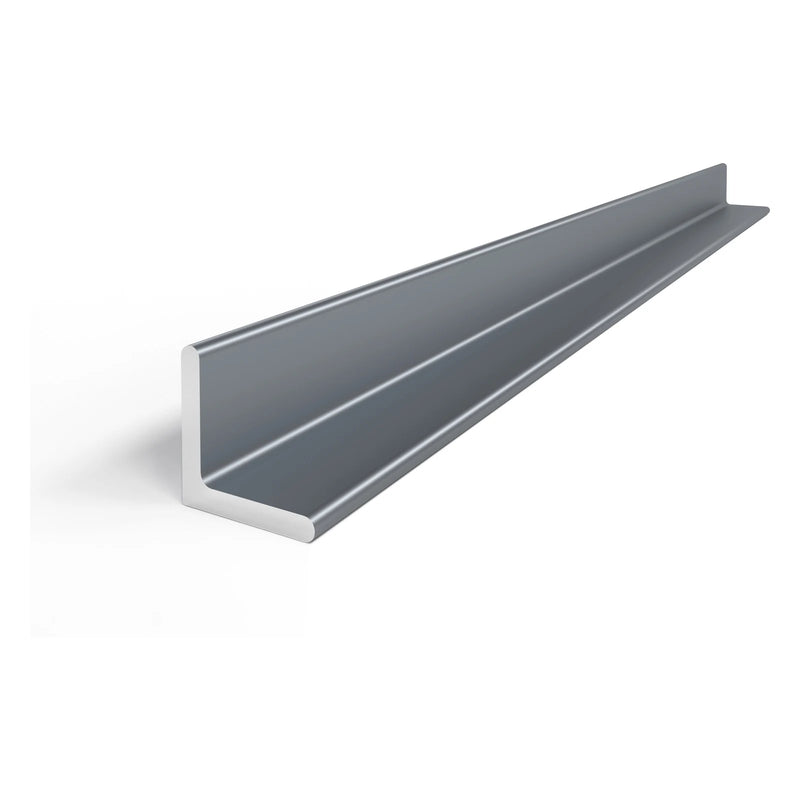

Hot-rolled steel angle with unequal legs, an L-shaped structural section used wherever a stiff, weldable corner member is needed. The two legs meet at a right angle with a small radius at the heel, giving the bar far more rigidity than flat stock of the same thickness.

Angle is supplied as mill-finish carbon steel, unpainted, and takes drilling, punching, torch cutting and arc welding with ordinary shop equipment. Because it is left bare it will develop surface rust on exposure and is normally primed, painted or galvanized after fabrication if it will be left outdoors.

The unequal-leg profile lets the wider leg carry the bearing or bolting surface while the narrower leg is fixed to the adjoining member, which is useful for lintels, shelf angles and edge trim conditions.

Key Features

• Unequal-leg L-section hot-rolled carbon steel angle
• Legs meet at 90 degrees with a radiused heel for stiffness along the length
• Mill finish, uncoated, ready for paint, primer or galvanizing after fabrication
• Weldable, drillable and punchable with standard fabrication tools
• Uniform thickness through both legs for predictable cutting and fit-up
• Supplied in cut lengths, sold individually

Applications

• Bracing, framing and bracket fabrication in steel assemblies
• Shelf angles and edge angles supporting masonry or slab edges
• Lintels over openings where an engineer has specified the section
• Equipment stands, mezzanine and platform framing
• Corner protection and edge reinforcement on concrete curbs and openings
• Weld-up repairs and general shop and field metalwork

Product Details

• Type: Steel Angle, unequal leg
• Material: Carbon steel
• Finish: Mill finish, uncoated
• Leg Dimensions: 4 in. x 3 in.
• Thickness: 3/8 in.
• Length: 10 ft.
• Approximate Weight: 85 lb.
• Sold By: Each

Specifications
