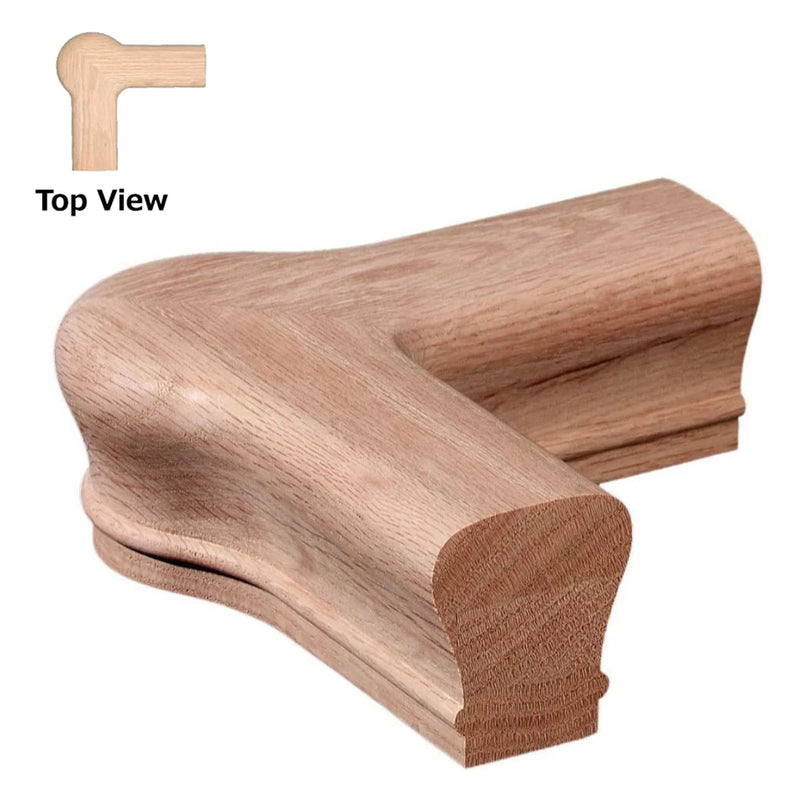

The 7021 quarter turn with cap is a stair fitting used in over-the-post (continuous) handrail systems, where the handrail turns ninety degrees and passes over a newel post rather than terminating into it. The integral cap sits on top of the newel and carries the rail through the turn, so the handrail reads as one unbroken member around a landing or a change of direction.

Milled from oak to match standard oak handrail profiles, the fitting is supplied unfinished so it can be sanded, stained and topcoated with the rail and treads. Fittings of this type are joined to straight rail with rail bolts and dowel screws, then blocked or plugged, leaving a tight glue joint that can be sanded flush before finishing.

Key Features

• Quarter turn stair fitting with integral newel cap for over-the-post handrail systems
• Turns the handrail ninety degrees while keeping the rail continuous over the post
• Solid oak, matching the grain and profile of oak handrail stock
• Supplied unfinished for on-site sanding, staining and clear coating
• Joins to straight rail with rail bolts or dowel screws for a sandable, glued joint
• Cap face bears on the newel top, concealing the post end grain

Applications

• Landing turns in continuous over-the-post stair rail systems
• Ninety-degree direction changes at the top of a stair run
• Balcony and gallery rail returning along a second-floor opening
• Volute and starting-fitting assemblies that require a matching turn
• Stair rail repair and replacement work matching existing oak fittings

Product Details

• Product Type: Stair handrail fitting
• Fitting: Quarter turn with cap
• Fitting Number: 7021
• Turn: 90 degree
• Material: Oak
• Finish: Unfinished
• Sold By: Piece

Specifications
