Insulation supports are stiff spring-wire rods that hold batt insulation up in a framing cavity without staples, twine or netting. The wire is cut slightly longer than the cavity it serves, so it bows when pushed into place and holds by spring tension against the joists.

The IS series from USP (now part of MiTek) is the standard version of this item: a plain carbon steel wire with chisel-cut ends that bite into the wood framing so the rod stays where it was set. Supports are pushed in after the batt is positioned, working from below, which makes them practical in crawl spaces and other areas where there is no room to work from above.

Rods are spaced along the run at whatever interval the batt needs to stay tight to the subfloor or deck, and they can be removed and reused if the insulation has to come down for wiring or plumbing work later.

Key Features

• Spring-wire insulation support for holding batt insulation between joists
• Made from 13 gauge carbon steel wire
• Chisel-cut ends dig into the joist faces so the support holds its position
• Supplied with no finish applied, for interior dry-service locations

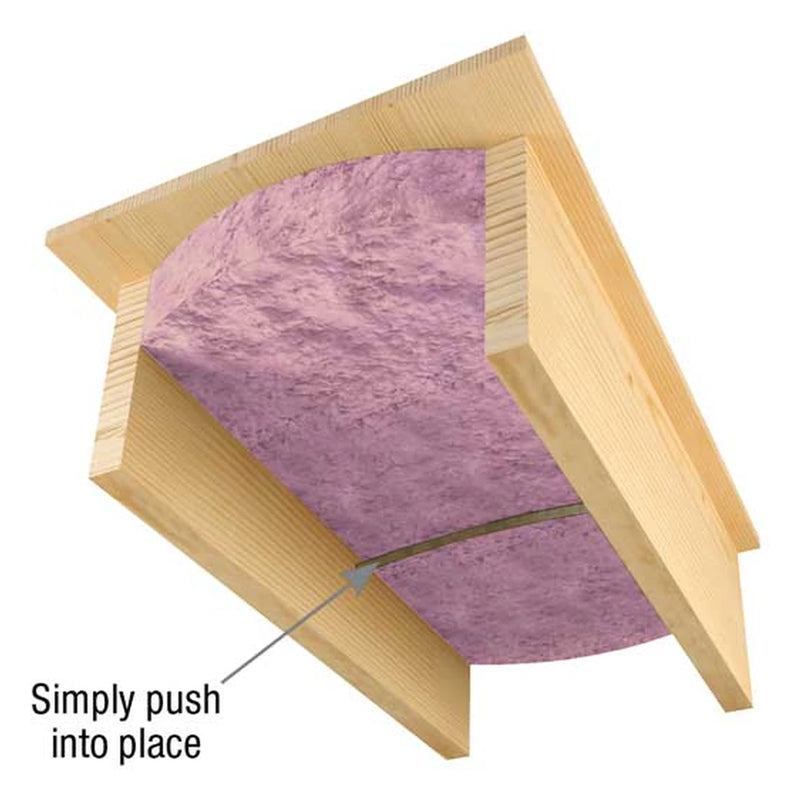

• Installs by hand from below: position the batt, hold the wire at its center and push it into the cavity
• No fasteners, netting or twine required, and the rods can be pulled and reused
• Holds unfaced or faced batts tight to the subfloor to close the air gap that reduces insulation performance
• Sold by the pack for production work

Applications

• Supporting floor insulation batts between joists over crawl spaces
• Insulating floors above unconditioned basements, garages and porches
• Holding batt insulation in place between roof or ceiling framing members
• Re-securing sagging or fallen batts during retrofit and weatherization work
• Temporary support of batts in cavities that will later receive a finished ceiling

Product Details

• Brand: USP
• Product Line: IS Series
• Model: IS24
• Type: Insulation support wire
• Material: 13 gauge carbon steel wire
• Finish: None
• Framing Spacing: For joists spaced 24 in. on center
• Installation: Push-in, no fasteners required
